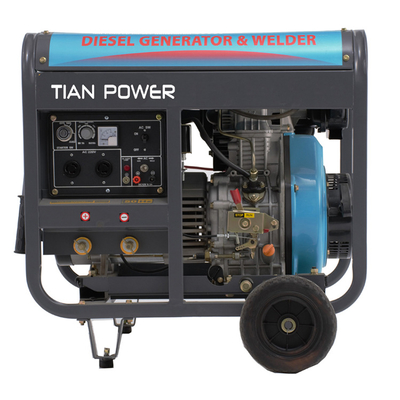

TIAN POWER OEM 5KW portable diesel welder generator
| (OPEN TYPE)TP6500DGW | |
| Rated frequency[Hz] | 50/60 |
| Rated voltage[V] | 110/120/220/230/240 |
| Rated current[A] | 17.3/18.2 |
| Rated output power[KW] | 4.0/4.5 |
| Max output power[KW] | 4.5/5.0 |
| Rated rotation speed[rpm] | 3000/3600 |
| Rated welding DC current(A) | 180 |
| Rated welding work voltage(V) | 26 |
| Welding load continuous ratio | 40% |
| Current regulation range(A) | 50-180 |
| Power factor[cos@] | 1.0 |
| Phase number | Single phase |
| Structure type | Open-frame or slient type |
| Continuous running time(at rated load) | 12 hours |
| Starting system | E:electric start |
| Engine model | Single cylinder,4-stroke,air-cooled,direct injection, diesel engine |
| Engine type | TP186FA/E |
| Rated power[KW(Hp)/rpm] | 4.0/3000 4.5/3600 |
| Fuel | 0#(summer) or 10#(winter)-20#(chillness) diesel |
| Lube | CDgrade or SAE 10W-30,15W-40 |
| Fuel tank Capacity (L[gal] | 15 |
| Overall dimension(LxWxH)[mm] | 740x500x670 |
| Dry weight[kg(lbs)] | 115 |
| 1*20GP | 102SETS |
2. Perfect air passage and inside design, make inside temperature very low with stable performance.
3. Diesel Generator use good brand components, give clients reliable quality.
4. Warranty time is 1 year, could supply spare parts for every mdoel since we are manufacturing factory.
5. The main features and advantages first lie in the soundproof material and technical application.
6. They are widely adopted by families, companies and other telecommunications.
1 Q:What is the payment terms?
A: EXW, FOB SHANGHAI, CFR, CIF
2 Q: What is your MOQ of this item?
A: 1-10 sets
3. Q: Where is the loading port?
A SHANGHAI Sea port( our factory located in Shanghai,China)
4 Q: Is it all right to make customer's own brand name?
A: Sure, we can be your OEM manufacturer with your authorization of brand.
5 Q: What are your payment terms?
A: T/T 30% deposit,70% balance against the B/L copy For container order
100% T/T Advanced payment for sample orders
6 Q: How long is your warranty?
A: Guarantee for one year or 1000 hours (accord to whichever reach first) from Ex-Factory date.
7 Q:What is the delivery time?
A: 10~20 days after receiving your deposit according to production line is busy or free
8. Q: What is your company production capacity?
A: 7000 Sets per month against your orders
